Scribner Fuel Cell Fixture | PEM & AEM
Interchangeable components for a wide range of experimental needs
- ✓ Modular compatibility
- ✓ Customizable design
- ✓ Reproducible results
Prices plus VAT plus shipping costs

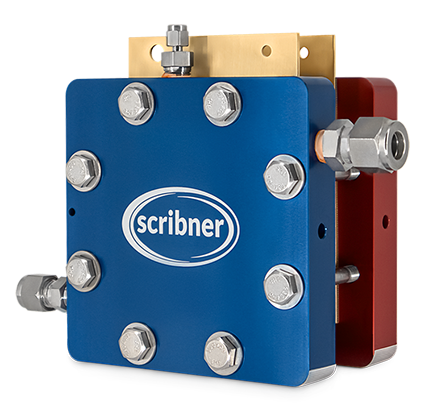

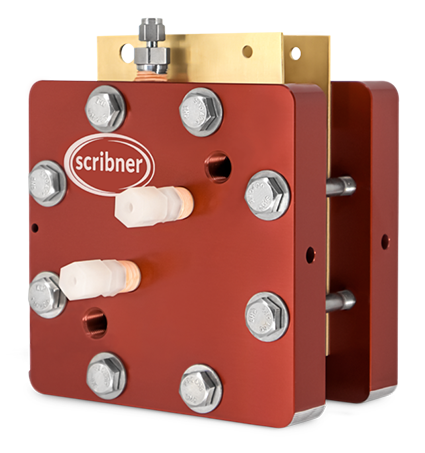

PEM & AEM Fuel Cell Fixture
Scribner Fuel Cell Fixtures: Cell Fixtures with reliable sealing, consistent compression and repeatable results
Scribner fuel cell fixtures are designed to give researchers the flexibility to build, modify, and optimize experiments without rebuilding their lab infrastructure. The fixtures are precision machined from premium metals selected for their chemical resistance, mechanical strength, and reliability under real experimental conditions.
Modular and Expandable
Every fixture is designed for modular compatibility. Thanks to the universal end plate design, components can be mixed and matched to suit your evolving setup – without reinvesting in an entirely new fixture.
Alternative Products
If, instead of a single cell fixture, you need a complete test stand for automated PEM or AEM electrolysis tests, we recommend the LEANCAT ETS-1 test station. Would you like to analyze current density and temperature across the active cell surface with spatial resolution? Then DILICO CURR TEMP offers you a specialized measurement solution for investigating cell behavior, hotspots, and gas supply.
Related Product Categories
Which Cell Fixture fits to your?
If you are looking for a custom made PEM, AEM, or electrolysis cell fixture, we would be happy to assist you in making your selection. Together, we will find the right solution for your application.
Variants
Specifications
| Fuel Cell Test Fixture | suitable for use with 5, 25 and 50 cm2 area cells |
|---|---|
| Configuration | for Liquid Fuels available |
| All wetted components of the liquid side | non-metallic and highly chemical resistant |
| Copper current collectors | Gold-plated |
| Swagelok® compression fittings | Anodized aluminum end plates with reactant input/output ports, stainless steel , cartridge heaters and thermocouple well |
| Load cables | 60 cm heavy-gauge copper conductor load cables |
| Gaskets | 51, 152 and 254 µm |
| Templates | for preparation of gaskets |
| Gaskets, gasket templates and additional hardware | such as bolts, washers, fittings and o-rings |
| Compatible with | BekkTech in-plane conductivity cell (BT – 112) |
| Operating temperature | up to 200 °C |
| Cell heaters | 115 V or 230 V |
Options & Accessories
| Pneumatic Compression Accessory | |
| Multi-Compartment Cell Fixture | |
| 50cm2 Cell Fixture | |
| Membrane Sensing Reference Electrode | |
| DILICO CURR TEMP, Segmentierte Platine |
Scope of Delivery
| Ultra-high purity, sealed POCO graphite flow fields with precision machined serpentine or interdigitated flow pattern |
| Gold-plated copper current collectors (2) |
| Anodized aluminum end plates (2) with reactant input/output ports, stainless steel |
| Copper conductor load cables, 60 cm heavy-gauge |
| Gaskets 51, 152 and 254 µm |
| Templates for preparation of gaskets |
| Gaskets, gasket templates and additional hardware such as bolts, washers, fittings and O-rings |
Applications
| PEM Fuel Cell |
| AEM Fuel Cell |
| Liquid-gas Fuel Cell |
| DMFC Fuel Cell |
Links & Downloads
Available Documents (Subject to Change)
Supplier
Scribner Associates Inc. is a global leader in the development of high-precision measurement systems for electrochemical applications, particularly in fuel cell, battery, and corrosion research. With decades of experience and cutting-edge technology, Scribner provides reliable solutions for demanding research and development needs. The product portfolio includes the well-known 850e Fuel Cell Test Systems, impedance spectroscopy instruments, and software solutions such as ZView® for data analysis. Scribner’s products are renowned for their accuracy, user-friendliness, and long-term stability-setting the standard in leading research institutions and industrial laboratories worldwide.
