Battery cyclizers from Neware and Novonix

Are you looking for a high-quality battery test system to measure battery performance?

Lithium-ion battery stress tests such as battery charging and discharging processes, simulation of battery aging, battery capacity tests and forming processes under different environmental simulations?

That runs smoothly for our battery performance test systems for lithium-ion batteries...

We offer state-of-the-art solutions for precise battery test systems, formation and classification systems from Neware and Novonix for all requirements that arise in battery production, the manufacture of electric vehicles and the production of energy storage systems. Thanks to the variety of measuring systems from both manufacturers, we are able to find the optimum solution for every requirement.

We offer you powerful basic versions, e.g. for simple battery ageing tests, through to sophisticated high-end solutions for high-precision measurement results, e.g. for incoming goods tests of cells delivered from Asia to evaluate the performance of your battery cells, battery modules and battery packs.

All our systems offer:

• Cell tester
• Cell cable and cell holder
• Temperature cabinets
• Integrated systems for space-saving solutions





Neware, founded in 1998 and based in China, produces state-of-the-art solutions for precise battery testing systems, formation and classification systems and heating cabinets used in battery production, electric vehicle manufacturing and energy storage production.

Neware Battery testers are reliable

• Cyclizer
• Analyzers
• Test devices for battery cells, battery modules, battery packs and supercapacitors

in high quality at fair prices.

All common test procedures can be carried out at cell, module and pack level. Due to the attractive price, systems with several channels can also be realized attractively.

The available system power ratings are 1000 V, 1000 A and 1000 kW.

A particular highlight is the new "ALL-IN-ONE" constant climate chamber.

This solution provides a consistent environment for stable and accurate long-term battery testing. This low-noise, space-saving and environmentally friendly test chamber is integrated with the Neware battery test system in the device, minimizing hardware connectivity and optimizing work efficiency through an easy-to-use control system.



Novonix is a Canadian manufacturer of measuring systems. The high-precision test systems are primarily used in research and development. The tests are carried out at cell level and deliver exact results at the highest level. Typical applications are, for example, cell selection in the quality control of incoming cells or cell material performance tests.

Professor Jeff Dahn from Dalhousie University, one of the world's recognized battery pioneers, developed the "Novonix High-Precision Coulometry".

Maintenance and repair services from us

In addition to sales, we also offer maintenance and repair services, so that you not only receive first-class products, but can also rely on professional support for maintenance and repairs - directly from the experts without having to travel long distances.



High-voltage test cover/test cage

In order to comply with the EN50191 standard, LXinstruments develops HV test covers for the standard-compliant design of safe workstations. The test covers prevent a test object from being touched while dangerous voltages are present. If the respective test cover is nevertheless opened, the voltage is automatically interrupted..

Die Norm EN50191 („Einrichten und Betreiben elektrischer Prüfanlagen“) beschreibt die Anforderungen an die Arbeitsplatzgestaltung für Prüfplätze, an denen mit gefährlichen Spannungen gearbeitet wird.

Decisive for the relevance of the standard are:

• Voltages >60V DC or >25V AC
• Currents over 3mA AC bzw. 12mA DC
• Stored electrical energy  >350mJ

Expansion LXinstruments-test covers:

• Sturdy, highly insulating plastic with hinged, transparent lid
• Built-in safety switch to lock the hood and release the high-voltage sources
• Generously dimensioned wiring compartment in the floor
• Prepared openings for easy attachment of connectors and other interfaces or cable feed-throughs
• Powerless opening and closing thanks to coordinated gas springs
• Ball bearing designed for high cycle rates
• Sizes 600mm and 900mm available

AN EXCHANGEABLE ADAPTER PLATE IN THE TEST CELL - OPTIONALLY WITH EXCHANGEABLE INTERFACE OR EXCHANGEABLE ADAPTER CASSETTE - ALLOWS QUICK ADAPTATION TO A WIDE VARIETY OF TEST SPECIMEN TYPES!

Interested? Give our colleague a call or find out more details in our Shop

Protective conductor testers / PE testers

The aim of the protective conductor test is to verify the earthing of test objects in protection class 1.

These devices have an electrical connection between housing parts and/or internal components and the earth conductor (PE) of the mains connection. It is tested for low resistance and current carrying capacity.

Depending on the applicable standard, a PE test, also known as a ground continuity check, can be carried out in which a defined current (typically in the range of <1A) is impressed and the contact resistance is measured.

The “ground bond test” places higher demands on the protective conductor tests. Here, the earth connection is subjected to a current that is greater than the largest current that can flow in the event of a device fault. Currents of 30-40A are often used, in exceptional cases up to 60A are required. The test object is energized over a defined period of time (dwell time), the time is calculated in such a way that the earth connection can be destroyed by the current if the earthing is insufficient and the contact resistance increases accordingly.

Would you like to find out more about our product portfolio? Have a look in our Shop.

High voltage testers

We offer a wide range of high-voltage testers, which are described here together with the actual high-voltage test.

The high voltage test, also known as

• Hipot Test
• HV Audit or
• Dielectric Withstand Test,

is an AC or DC high voltage applied to an insulation barrier in the test object and the flowing leakage current is measured. If the insulation barrier breaks down, a large current suddenly flows, which is only limited by the high-voltage tester. The HV testers we sell switch off at an adjustable limit value in the event of a breakdown.

The current that the high-voltage tester can supply can be particularly important in the case of AC high-voltage testing. When recharging the filter capacitors in the power supply unit of the device under test, a certain leakage current always flows, which must be supplied by the test device in order to achieve the set test voltage. Some standards require devices that can supply up to 500VA.

We have high-performance products in our Shop.

Multifunctional safety tester

LXinstruments has many multifunction safety testers and AC sources on offer. There is a wide variety of devices.

Leakage current tests are carried out during normal operation of the device under test, often with an increased operating voltage. The current flowing via the operator or the protective conductor is measured under various fault conditions and must not exceed the limits specified in the relevant standard. The following fault conditions are tested in all possible combinations:

• Normal operation/functional tests
• Disconnected connection to the protective conductor
• Disconnected connection to the N conductor
• Interchange of N and L

In the field of medical electronics, leakage currents via patient connections (e.g. ECG electrodes) and leakage currents between two devices connected to the patient (Mains on Applied Parts) are also verified.

Die verschiedenen benötigten Signalpfade und die Beschaltung der von der jeweiligen Norm geforderten Gewebenachbildung werden mithilfe des im Tester integrierten Line-Leakage Moduls und ggf. externen HV-Schalteinheiten realisiert. Basierend auf der gewählten Gewebenachbildung fließt ein Ersatzableitstrom.

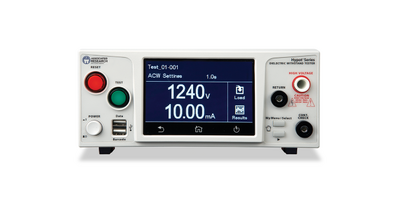

Hypot | HypotMAX | HypotULTRA | OMNIA | HYAMP | LINECHEK

Are you looking for high-performance Associated Research products?
Then you've come to the right place!

We are your partner for all questions regarding the Associated Research product range. We look after the entire Associated Research portfolio (Hypot | HypotMAX | HypotULTRA | OMNIA | HYAMP | LINECHEK) in terms of

• sales
• and all services (maintenance, repairs, calibration).

As we have an experienced repair team on site, repairs are carried out quickly and directly at our headquarters near Stuttgart.
Our experts are also available for detailed technical product advice or integrated applications, e.g. in safety hoods.

Product Portfolio:

V7X series high voltage and safety tester:

Standard series with up to 20 mA AC and up to 10 mA DC output power

Vitrek 4700 high-voltage precision meter:

Outstanding AC & DC voltage accuracy, high stability & resolution

95x Series Hipot Tester with extra large measuring range:

Hohe Ausgangsleistung 200 mA AC-Versorgung | 50 mA DC-Versorgung

98xi series insulation resistance tester:

Teraohmmeter series for higher voltage IR test requirements

964i Automated high-voltage test switching system:



Performance criteria of the Vitrek safety test devices:

• Leakage current up to 1 nA
• Voltages up to 30 kV
• Ground bond up to 60 A
• Insulation resistance in the TeraOhm range
• +256 channels
• Arc Detection & partial discharge



Can we help you further?

As a system integrator, we are used to supplying everything from individual devices to complete system solutions, including operating and automation software. It therefore goes without question that we accompany you

• with further technical support
• in the development of integrated system solutions
• with certified calibrations
• with maintenance & training
