Marvin Test Solutions ATEasy | Test Software
ATEasy accelerates the development, execution, and maintenance of modular test software while simplifying long-term ATE system operation
- ✓ Integrated Test Executive
- ✓ 32- and 64-bit applications
- ✓ Royalty-free EXE and DLL deployment
- ✓ Open hardware and software architecture
ATEasy Development and Test Software

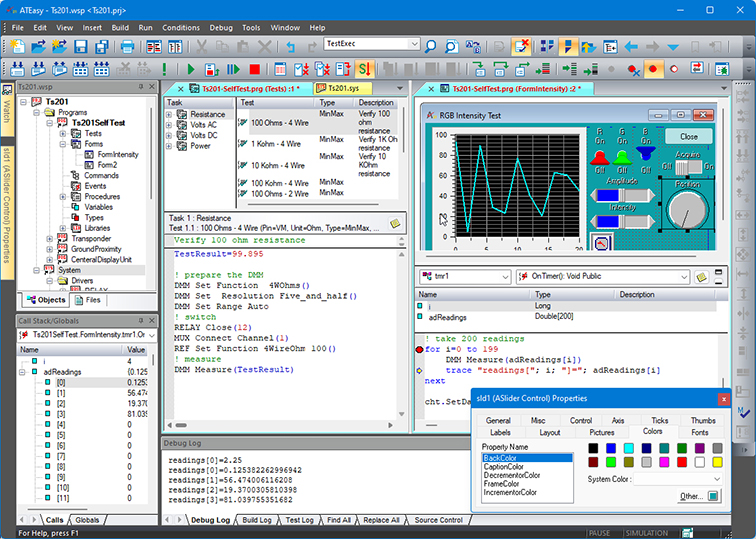

Marvin ATEasy: Develop and Run Test Programs
Marvin ATEasy is a development environment with an integrated Test Executive for functional testing, Automated Test Equipment (ATE), data acquisition, process control, and test and measurement systems.
Build Modular Test Software
Marvin ATEasy separates the test program, test system configuration, and instrument control into dedicated modules. Tests, drivers, and system configurations can be modified without rebuilding the entire application. Simulation, the Application Wizard, and the debugger support software development and code verification.
The graphical user interface (GUI) editor enables users to create menus, buttons, input fields, and event-driven processes.
Integrate Instruments and Software
GPIB, VXI, PCI/PXI, USB, LXI/TCP-IP, and serial interfaces connect instruments and test systems. DLLs, C header files, .NET assemblies, ActiveX components, LabVIEW VIs, and IVI and VXI Plug&Play drivers can also be integrated.
The Instrument Interchangeability Technology (I2T) uses instrument-independent commands. When an instrument is replaced, only the corresponding driver needs to be integrated, while the test program remains unchanged.
ATEasy-Lite for OEM Test Systems
ATEasy-Lite is a cost-effective solution for OEM test systems based on Marvin ATEasy. The software is supplied with the corresponding hardware, supports its drivers and up to two additional instrument drivers, and uses the connected system hardware as the license key. An upgrade to the standard ATEasy version is available; EXE file generation is not included.
License Term, Updates, and Support
The ATEasy license is perpetual. Technical support, software downloads, and upgrades to new Marvin ATEasy versions are included for the first year. This service can be renewed afterward. Without renewal, the existing version remains operational, but access to new versions, downloads, and support is no longer included.
Alternative Products
For small and medium-sized test systems with typical sequence complexity, the LXinstruments TMS Test Management Software is a streamlined alternative. It creates, controls, and evaluates automated test sequences for development, production, and service. For test systems using NI TestStand, Keysight TestExec SL, or LX-TMS, the TSCOE4 Operator Environment adds user management, a test database, and a standardized operator interface to the test software.
Related Product Categories
Test Software | LXI/PXI Systems | Interface Cards
Does ATEasy Fit Your Test Software Architecture?
We will assess how ATEasy fits your instruments, drivers, and test workflows and determine the right license option for development, test execution, and deployment.
Specifications
| Software Type | Development environment with integrated test execution |
|---|---|
| Test Executive | Integrated and customizable |
| Module Structure | Program, system, and driver modules |
| Test Execution | Test programs and test sequences |
| Simulation | Test programs and system components |
| Debugging | Debugger and fault analysis |
| User Interface | Graphical user interface editor |
| Instrument Interfaces | GPIB, VXI, PCI/PXI, USB, LXI/TCP-IP, and serial interfaces |
| Software Integration | DLLs, C header files, .NET assemblies, ActiveX, and LabVIEW VIs |
| Driver Support | IVI and VXIplug&play drivers |
| Instrument Replacement | Instrument Interchangeability Technology (I2T) |
| Application Deployment | EXE applications and DLL libraries |
| License Models | Single-user, USB hardware key, and network licenses |
| Network License | Available from three license seats |
| Software Version | ATEasy-Lite for hardware-bound ATE systems |
Options & Accessories
| Single-User License | Software-based license for one workstation |
|---|---|
| USB Hardware Key | Portable licensing via USB license key |
| Network License | Concurrent use based on the number of purchased license seats |
| Minimum Network License Package | Three license seats |
| ATEasy-Lite | Limited, hardware-bound version for complete ATE systems |
| Subscription and Support | Renewable coverage for upgrades, downloads, and technical support |
| Support Agreement | Technical support without software upgrades |
| Training | Multi-day ATEasy training courses available |
| Upgrade | Upgrade from ATEasy-Lite to the full ATEasy version available |
Scope of Delivery
| Software | ATEasy development and test software |
|---|---|
| License | According to the selected license option |
| Service Period | One year of subscription and support |
| Software Downloads | Included during the active service period |
| Upgrades | New ATEasy versions released during the service period included |
| Technical Support | Included for one year |
| Licensing | Depending on the version, via software activation, USB license key, or network license |
Applications
| Functional Testing | Development and execution of automated test programs |
|---|---|
| Automated Test Equipment | Control of complete ATE systems |
| Production Testing | Automated testing in manufacturing and final inspection |
| Data Acquisition | Acquisition and processing of measurement data |
| Process Control | Control and monitoring of technical processes |
| Measurement and Instrumentation Systems | Integration and control of different instruments |
| Test Program Development | Creation, simulation, and debugging |
| Driver Development | Integration and customization of instrument drivers |
| User Interfaces | Creation of graphical operator interfaces for test stations |
| Fault Diagnostics | Evaluation of test results and support for repair processes |
| Long-Term Availability | Reuse and maintenance of test software in long-life test systems |
Links & Downloads
Supplier
Marvin Test Solutions is an American manufacturer of PXI instruments and software for functional test systems and semiconductor test. A particular strength of Marvin Test Solutions are fast digital pattern I/O boards, FPGA and SMU boards in 3U and 6U PXI form factor. In addition to individual components, Marvin also supplies pre-configured functional test systems and semiconductor test systems. With the ATEasy development environment, Marvin offers customers who want to realise their own test software architecture a powerful construction kit including integrated sequencer functions. LXinstruments distributes Marvin Test Solutions products in Germany, Austria and Switzerland.
