VTI Instruments EMX-7500 Series | PXIe Module
- ✓ 300 mA Sink
- ✓ LV TTL - TTL - 60 V max
- ✓ common IVI Software drivers
VTI Instruments VT-EMX-7500 Series
PXIe Module | High Current - 300 mA Sink
High Density - 64 Channels / Card, Isolation - 1000 V
The EMX-75XX Series adds to AMETEK VTI Instruments' growing PXI Express (PXIe) Core Automated Test Equipment (ATE)TM family as a high-current, high-density digital input/output line of modules. Unlike many static I/O PXIe modules on the market today, the EMX-75XX Series can sink or source up to 300 mA on each channel. Delivering beyond just 2 V and 5 V, engineers can program the cards to support a wide range of voltages and more—on every channel, for both input and output.
The specialized EMX 7510, EMX 7511, EMX 7512 and EMX-7519 cards offer 64 static Digital Inputs/Output channels. EMX-7513, EMX 7514, and EMX 7515 variations offer 1000V Isolation for specialized applications. With industry standard software including IVI drivers available, the EMX-75XX Series easily connects to the rest of any ATE configuration.
Variants
Specifications
| Specification | Value |
|---|---|
| High Current | 300 mA Sink |
| High Density | 64 Channels / Card |
| Isolation | 1000 V |
| Multiple Digital Logic Levels | LV TTL - TTL - 60 V Max, User Defined |
| Flexible Configurations | Dedicated Input - Dedicated Output - Eight, 8-Bit Ports |
| Flexible Software | Embedded Soft Front Panel - Common IVI Software Drivers |
Options & Accessories
| Manufacturer number | Name |
|---|---|
| VT-70-0409-160 | Strain relief bracket kit (without connector) |
| VT-52-0109-000 | Crimp Pin (includes 100 crimp pins) |
| VT-27-0088-160 | Mating connector (one per board) |
| VT-46-0010-000 | Crimp tool (DIN) |
| VT-46-0011-000 | Extraction tool (DIN) |
| VT-70-0363-505 | 160-Pin, unterminated cable assembly, 3ft |
| VT-70-0367-005 | EMX-TB160SE terminal block, single-ended module |
Scope of Delivery
| Scope of delivery |
|---|
| PXIe Module |
| Factory Verification Certificate |

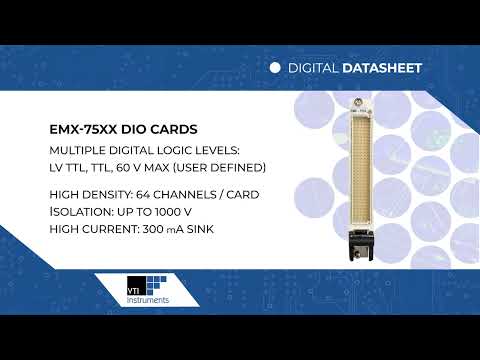

Videos
