ITECH IT-M3200 | High Precision Programmable DC Power Supply
Compact, high-precision DC power supply with low ripple, µA measurement, and flexibly scalable channels.
- ✓ Power: up to 14.4 kVA
- ✓ Voltage: 50 - 420 V
- ✓ Current: 0 - 160 A
Prices plus VAT plus shipping costs
High-Precision Programmable DC Power Supply for Multi-Channel Test Systems
ITECH IT-M3200: Precise DC Power Supply in a Compact Form Factor
The ITECH IT-M3200 Series comprises high-precision programmable DC power supplies in a compact 1U half-rack design. This saves valuable rack space when multiple supply channels are required in a test system. Low ripple and high measurement accuracy support stable and reproducible test conditions.
Current measurement ranges from the ampere level down to the microampere range. This allows both higher operating currents and very small currents to be measured on the same DUT. Multiple channels can be controlled independently and adapted to the specific test task. This is particularly useful when a device requires several supply voltages or when multiple DUTs need to be powered in parallel.
In larger test systems, up to 16 × 16 channels can be remotely controlled. This allows the number of supply channels to grow with the test setup without fundamentally changing the system architecture. Typical applications include automated functional testing as well as testing of sensors, semiconductor devices, 5G modules, and wearables.
Alternative Products
If you require two isolated outputs, the ITECH IT-M3100D is a suitable alternative. It provides two independently controllable channels and, depending on the model, up to 400 W per channel. For a broader voltage, current, and power range within a compact programmable DC power supply, the ITECH IT-M3100 Series is a suitable option. For precise laboratory and test applications at lower power levels, the ITECH IT6100B Series is another suitable alternative.
Related Product Categories
Programmable DC Power Supplies and Sources
Do you need precise DC power in a compact format?
We will help you configure the right IT-M3200 solution—from µA-accurate current measurement to synchronized multi-channel operation.
Variants
Specifications
| Output Power | 100 W, 200 W, or 360 W (depending on model) |
|---|---|
| Output Voltage | 0 to 20 V or 0 to 60 V (depending on model) |
| Output Current | 0 to 10 A or 0 to 20 A (depending on model) |
| Form Factor | 1U, half-rack width |
| Current Measurement |
|
| Current Readback Resolution | up to 10 nA |
| Multi-Channel Control |
|
| CC/CV Priority | selectable CV or CC priority |
| Ripple and Noise | low |
| LIST Function | programmable voltage and current profiles over time |
| Protection Functions | OVP / OCP / OTP / OPP / UVP / UCP and Foldback |
| Communication Protocols | SCPI / CANopen |
| Expansion Interfaces | optional via interface cards |
Options & Accessories
| IT-E1205 | GPIB Communication Card |
|---|---|
| IT-E1206 | USB/LAN Communication Card |
| IT-E1207 | RS232/CAN Communication Card |
| IT-E1208 | Analog/RS485 Interface Card |
| IT-E1209 | USB Communication Card |
| IT-E154A | Rackmount Kit for Two Units |
| IT-E154B | Rackmount Kit for One Unit |
| IT-E154C | Rackmount Kit |
| IT-E154D | Rackmount Kit |
| IT-E30110-AB | 10 A Connection Cable, 1 m, Alligator Clip to Banana Plug |
| IT-E30110-BB | 10 A Connection Cable, 1 m, Banana Plug to Banana Plug |
| IT-E30110-BY | 10 A Connection Cable, 1 m, Banana Plug to Y-Terminal |
| IT-E30312(20)-YY | 30 A Connection Cable, 1.2 m or 2 m, Y-Terminal to Y-Terminal, Pair |
| IT-E30615-OO | 60 A Connection Cable, 1.5 m, Ring Terminal to Ring Terminal, Pair |
| IT-E31220-OO | 120 A Connection Cable, 2 m, Ring Terminal to Ring Terminal, Pair |
| IT-E32410(20)-OO | 240 A Connection Cable, 1 m or 2 m, Ring Terminal to Ring Terminal, Pair |
| IT-E33620-OO | 360 A Connection Cable, 2 m, Ring Terminal to Ring Terminal, Pair |
| IT-E9003 | 3-Year Extended Warranty |
| IT-E9005 | 5-Year Extended Warranty |
Scope of Delivery
| Power Cord | Country-specific version |
|---|---|
| Factory Test Report | Contains the results of the final inspection performed on the unit before shipment |
| IT-E251 | Interconnection Cable for Connecting Multiple Units |
Applications
| Semiconductor Testing | IGBT chips, power management ICs, and LED/OLED assemblies |
|---|---|
| Sensor Testing | Acceleration, gyroscope, flow, and pressure sensors |
| 5G and Communication Modules | GSM, Wi-Fi, and optical modules |
| Wearables | Smart wristbands and medical wearable devices |
| Multi-Channel Testing | Synchronized testing of multiple DUTs or powering assemblies with multiple DC inputs |

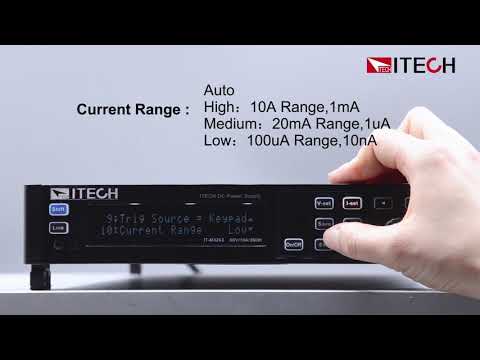

Videos
Links & Downloads
Available Documents (Subject to Change)
Supplier
LXinstruments has been supplying ITECH equipment since 2020. When an individual instrument needs to become part of a complete test system, we support you with product selection, system sizing and integration into the automation environment. The key is to ensure that the DUT, power requirements, interfaces and test sequence work together.
We also use ITECH equipment in customized test systems. Depending on the test application, we combine power supplies, electronic loads, grid simulation and measurement technology so that the functions match both the DUT and the test sequence.
