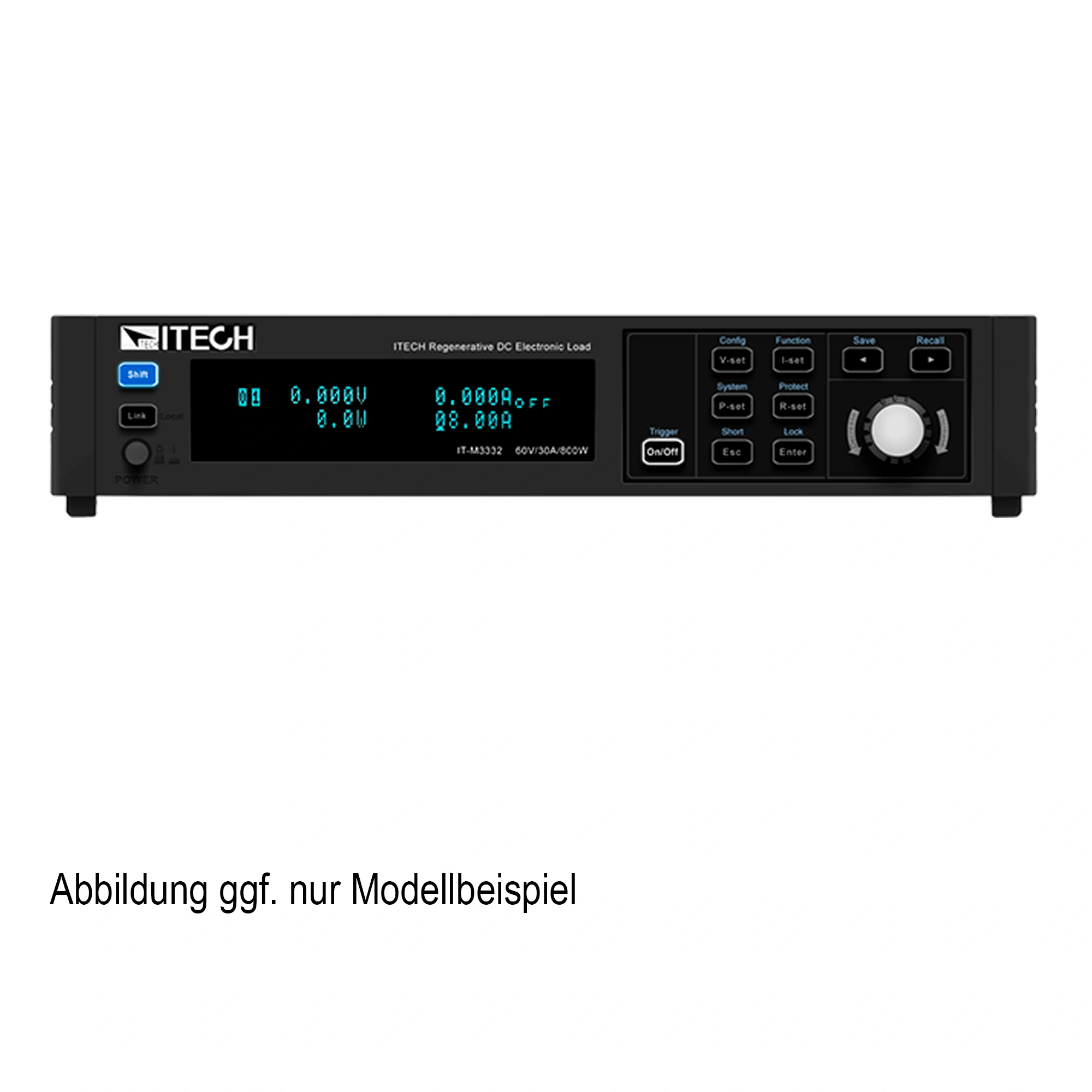

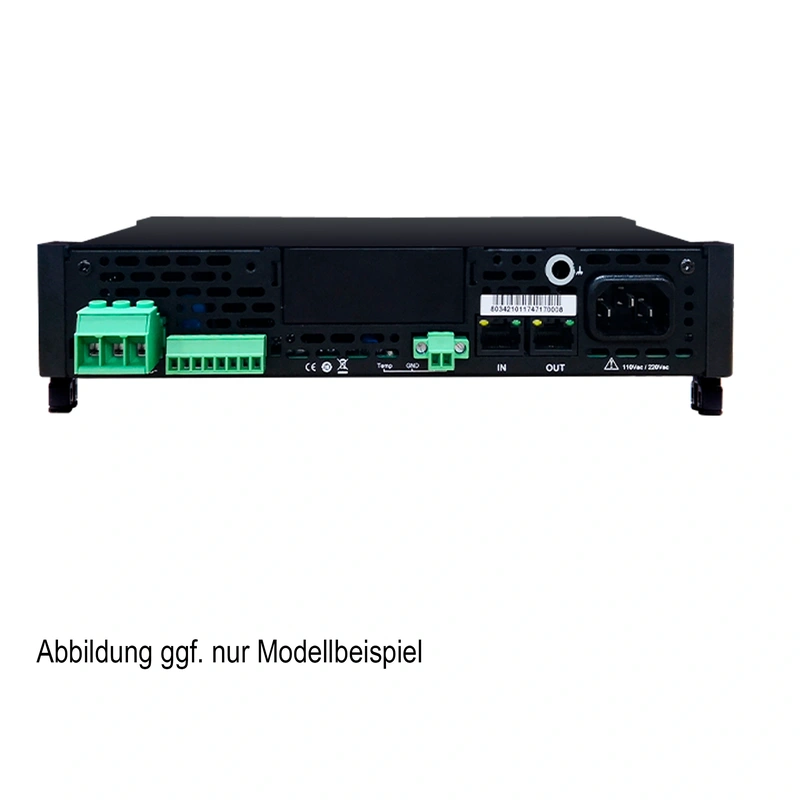

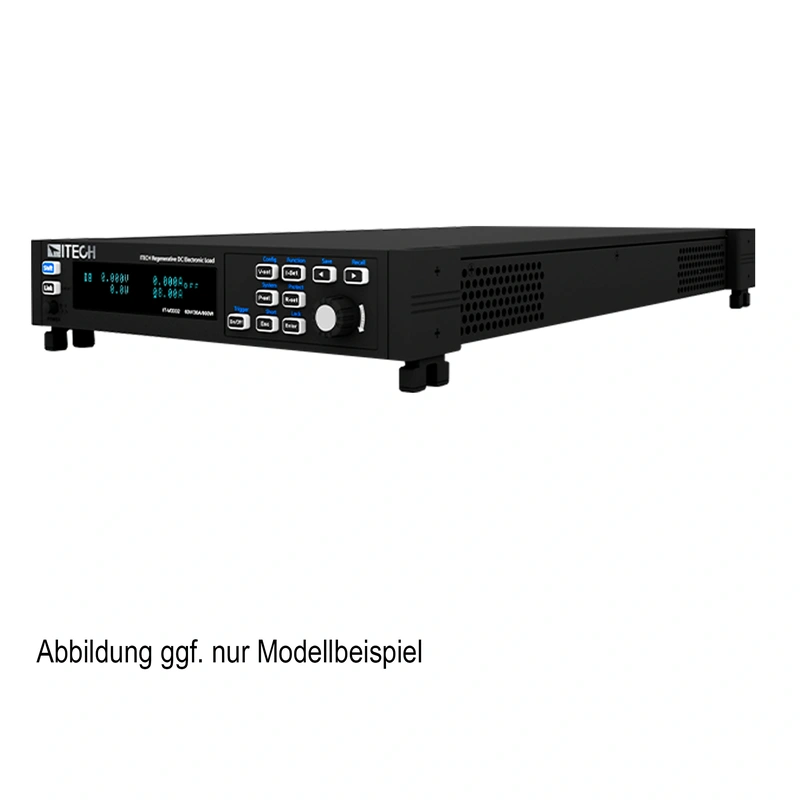

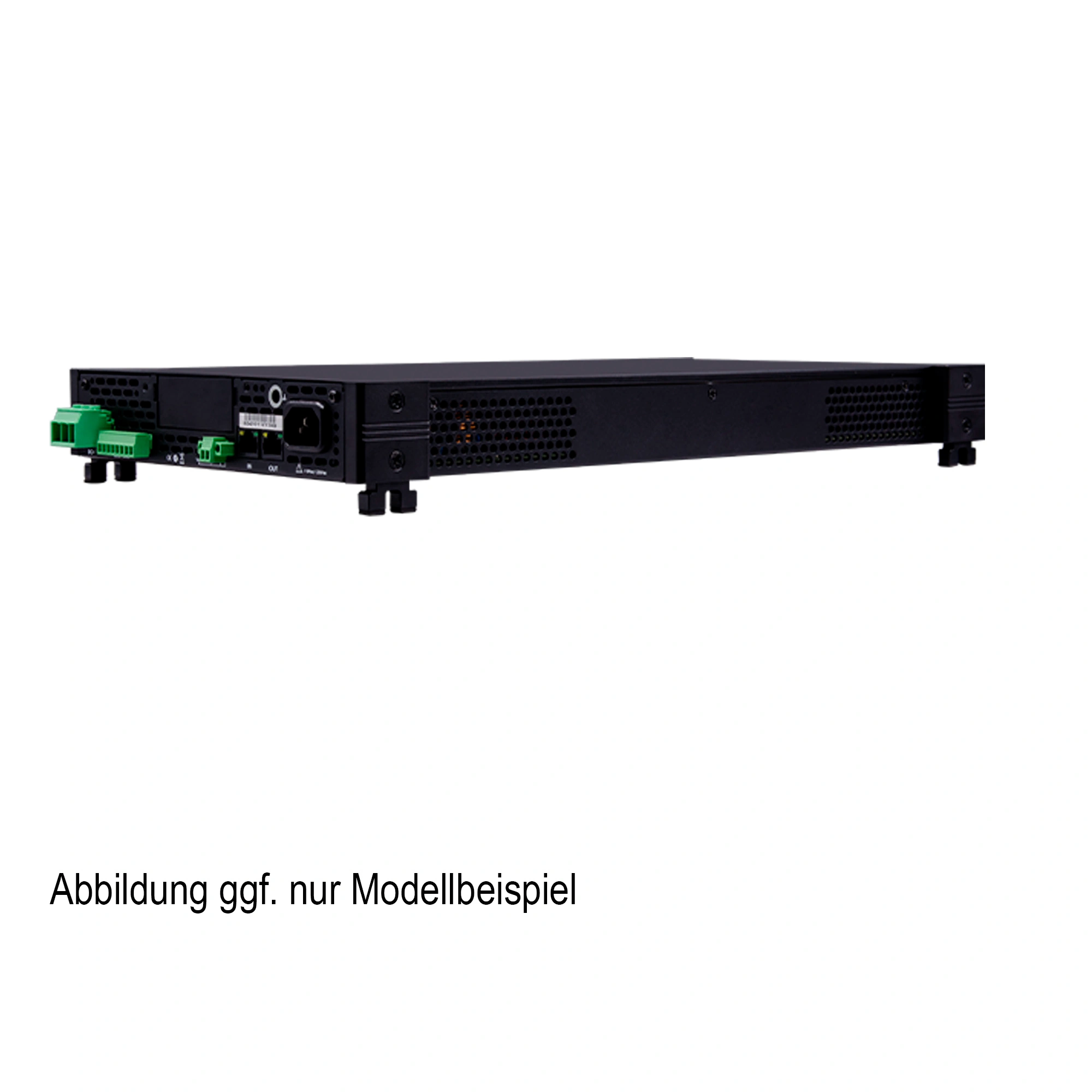

ITECH IT-M3300 | Regenerative DC Electronic Load
Compact regenerative DC load for flexible load profiles with energy recovery – scalable to up to 256 channels.
- ✓ Power: up to 800 W
- ✓ Voltage: up to 600 V
- ✓ Current: up to 30 A
Prices plus VAT plus shipping costs
Regenerative Electronic DC Load for Dynamic Load Profiles
ITECH IT-M3300: Regenerative DC Load in a Compact 1U Form Factor
The ITECH IT-M3300 Series is a regenerative electronic DC load for testing power supplies, power electronics, and electronic assemblies. Instead of dissipating most of the absorbed energy as heat, it feeds up to 90% of the power back into the grid. This reduces heat loss and cooling requirements and makes the series particularly suitable for endurance, burn-in, and production testing.
Depending on the model, the series provides input voltage ranges of 60 V, 150 V, 300 V, or 600 V, currents of up to 30 A, and load power levels of 200 W, 400 W, or 800 W. CC, CV, CP, CR, and four combined operating modes enable the simulation of different load characteristics. LIST functions and adjustable current rise and fall times support dynamic and reproducible test sequences.
The compact 1U half-rack design is suitable for modular multi-channel systems. Up to 256 channels can be controlled synchronously and proportionally tracked. Individual units can be operated independently, while a 37U cabinet can accommodate up to 64 channels. Typical applications include battery discharge testing, multi-channel power supply testing, and burn-in testing of semiconductors, relays, and wiring harnesses. OCP, UCP, OVP, UVP, OPP, Foldback, grid fault protection, and Sense fault protection support safe test sequences.
Alternative Products
For regenerative DC load testing with higher power requirements, the ITECH IT-M3800 Series is a suitable option. As a more compact conventional electronic DC load for comparable test applications, but without energy recovery, the ITECH IT8500G+ Series is a suitable alternative.
Related Product Categories
Compact DC Load for Flexible Testing
Use flexible load profiles and energy recovery in a compact 1U format. We advise you on how the IT-M3300 can be used for labs, test benches or scalable multi-channel applications.
Variants
Specifications
| Power | 0 - 800 W |
|---|---|
| Voltage | 0 - 600 V |
| Current | 0 - 30 A |
| Size | 1/2 1 U |
| High power density | up to 800 W in 1 U 1/2 rack |
| Parallel connection | of up to 16 units |
| High efficient power regeneration | |
| Optional interfaces | GPIB/analog & RS232 / USB / CAN / LAN / Analog / Digital IO / RS485 |
| Various protection functions | OCP. UCP. O VP. U VP. OPP. Precharge function to prevent overshoot of DC loading current |
| 8 operating modes | CC, CV, CP, CR, CV+CC, CC+CC, CV+CR, CV+CR, CV+CC+CP+CR |
| Current rise / fall time | adjustable |
| 5 optional interfaces available | RS232, CAN, Ethernet/LAN, GPIB/IEEE488, USB_TMC, USB_VCP, RS485, Analog- and IO-communication |
| Precharge function | to prevent overshoot of DC loading current |
| High-speed measurement | keep 10 times / s update rate even connecting 16 stand-alone |
| List programming |
Options & Accessories
| IT-E118 | Verpolschutzmodul |
|---|---|
| IT-E1203 | Temperatursensor |
| IT-E1205 | GPIB-Kommunikationskarte |
| IT-E1206 | USB-/LAN-Kommunikationskarte |
| IT-E1207 | RS-232-/CAN-Kommunikationskarte |
| IT-E1208 | Kommunikationskarte für externe Analogsignale und RS-485 |
| IT-E1209 | USB-Kommunikationskarte |
| IT-E154A/B/C/D | Rack-Montagezubehör, je nach Einbaukonfiguration |
| IT-E30110-AB | Messleitung, 10 A, 1 m, Krokodilklemme/Bananenstecker, paarweise |
| IT-E30110-BB | Messleitung, 10 A, 1 m, Bananenstecker/Bananenstecker, paarweise |
| IT-E30110-BY | Messleitung, 10 A, 1 m, Bananenstecker/Y-Kabelschuh, paarweise |
| IT-E30312(20)-YY | Leistungskabel, 30 A, 1,2 m oder 2 m, Y-Kabelschuhe, paarweise |
| IT-Schrank | Systemschrank mit 15 HE, 27 HE oder 37 HE |
Scope of Delivery
| Gerät | IT-M3300-Serie in der bestellten Ausführung |
|---|---|
| AC-Netzkabel | länderspezifische Ausführung |
| IT-E251 | Verbindungskabel für den Mehrgerätebetrieb |
Applications
| Laboratories |
| Test stands |
| Battery discharge |
| Multi-channel powel supplies |
| Semiconductor aging |
Videos
Links & Downloads
Available Documents (Subject to Change)
Supplier
LXinstruments has been supplying ITECH equipment since 2020. When an individual instrument needs to become part of a complete test system, we support you with product selection, system sizing and integration into the automation environment. The key is to ensure that the DUT, power requirements, interfaces and test sequence work together.
We also use ITECH equipment in customized test systems. Depending on the test application, we combine power supplies, electronic loads, grid simulation and measurement technology so that the functions match both the DUT and the test sequence.
