PICOPROBE® Model 18C/19C | Active High-Impedance Probe
Precisely measures even the most sensitive MOS nodes and finest structures without significantly distorting the signal.
- ✓ Active High-Impedance Probes
- ✓ for Sensitive MOS Circuits – 0.02 pF Input Capacitance
- ✓ 10⁻¹⁴ A Leakage Current
- ✓ DC to 350 MHz
- ✓ 1.2 ns Rise/Fall Time
GGB PICOPROBE® 18C/19C – Active High-Impedance Probes for MOS Nodes and On-Wafer Probing

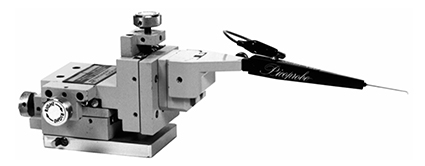

GGB PICOPROBE® Models 18C/19C: Active Probes for High-Impedance MOS Nodes
The GGB PICOPROBE® Models 18C/19C are active high-impedance probes for direct measurements on MOS nodes, fine conductor structures and wafer-probing setups. With 0.04 pF input capacitance and 10 fA input leakage, the input places only a small load on the contact point. The signal is routed to the oscilloscope while keeping the loading at the measurement point lower than with a standard passive probe.
Connecting the Measurement Point to the Oscilloscope Input
At high-impedance nodes, the input load determines how much the probe changes the measurement point. The 18C/19C models route the signal from the contact point to the oscilloscope and keep the capacitive load at the input low.
Voltage Ranges, Attenuation and the Probes Category of the GGB PICOPROBE® Models 18C and 19C
GGB specifies a signal path from DC to 350 MHz. Model 18C covers 0 to +10 V, while Model 19C covers -7 to +3 V. At the oscilloscope, GGB specifies 10:1 attenuation at high-impedance inputs and 20:1 at 50-Ω inputs.
Selecting the Probe Tip by Contact Area and Wire Diameter
For replacement tips, the contact area determines which tungsten-wire diameter fits the measurement point. GGB lists 5 µm, 10 µm, 20 µm and 50 µm wire diameters; smaller diameters suit very small structures, while larger diameters provide more mechanical margin during touchdown.
Alternative Products
For RF or microwave probing rather than high-impedance MOS nodes, the LXinstruments shop lists the PICOPROBE® Model 10 Series as a separate product line.
For measurement tasks focused on capacitance or resistance, the PICOPROBE® Models 7/7A are the appropriate alternative.
Related Product Categories
Clarify Your Measurement Task
Are you measuring sensitive MOS nodes and need to check model selection, voltage range or oscilloscope input before sending an enquiry? Send us your measurement task and the key setup details. Our expert team will be happy to help.
Specifications
Shared Specifications of Models 18C and 19C
| Input capacitance | 0.02 pF |
|---|---|
| Input leakage | 10⁻¹⁴ A |
| Rise/fall time | 1.2 ns |
| Frequency response | DC to 350 MHz |
| Gain accuracy | ±5 % |
| Signal attenuation | 10 to 1 with high-input-impedance oscilloscopes, 20 to 1 with 50-ohm input |
Model 18C
| Operating range | 0 to +10 V |
|---|---|
| Linearity | 0.2% in the 5 V range, 2% in the 10 V range |
Model 19C
| Operating range | -7 to +3 V |
|---|---|
| Linearity | 0.2% in the ±3 V range, 2% in the -7 to +3 V range |
Options & Accessories
Probe tip housing shapes:
| Model 18C-1 | straight shape |
|---|---|

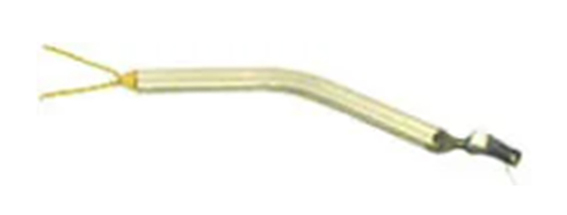

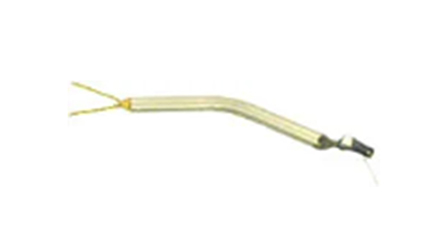

| Model 18C-2 | angled shape |

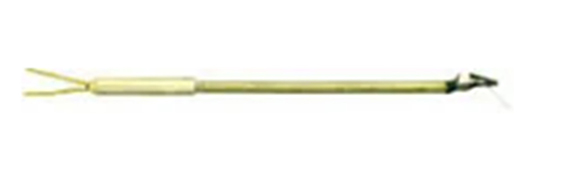

| Model 18C-4 | extended straight shape |
Replaceable probe tips - ordering variants based on housing shape, tungsten wire diameter, and point diameter:
| 18C-1-10 | wire diameter 10 µm, point diameter < 0.1 µm |
|---|---|
| 18C-1-20 | wire diameter 20 µm, point diameter < 1.0 µm |
| 18C-1-50 | wire diameter 50 µm, point diameter < 3.0 µm |
| 18C-2-10 | wire diameter 10 µm, point diameter < 0.1 µm |
| 18C-2-20 | wire diameter 20 µm, point diameter < 1.0 µm |
| 18C-2-50 | wire diameter 50 µm, point diameter < 3.0 µm |
| 18C-4-10 | wire diameter 10 µm, point diameter < 0.1 µm |
| 18C-4-20 | wire diameter 20 µm, point diameter < 1.0 µm |
| 18C-4-50 | wire diameter 50 µm, point diameter < 3.0 µm |
PICOPROBE® Standard-Power Supply:
| 110 V | |
| 230 V |
Note: The suitable probe tip housing shape and tungsten wire diameter depend on your probe station, wafer test setup, and micropositioner. Please contact us – we will be happy to help you find the optimum version for your application.
Scope of Delivery
| PICOPROBE® Model 18C or PICOPROBE® Model 19C, probe tip with tungsten wire – depending on configuration |
| Power supply – depending on configuration |
Applications
| Direct probing of sensitive MOS dynamic nodes |
| Characterization of fast circuits from DC to 350 MHz |
| Measurements on finest conductor lines and microstructures |
| Use on probe stations and micropositioners |
| On-wafer probing in semiconductor technology |
