ITECH IT6600D | High Power DC Power Supply
Adds flexibility to DC test benches, reduces changeovers and delivers stable supply for changing DUTs and operating points.
- ✓ up to 42 kW in 3U
- ✓ up to 2250 V
- ✓ up to 10 MW parallel operation
Prices plus VAT plus shipping costs
Dual-Channel Programmable High-Power DC Power Supply
ITECH IT6600D: Two Isolated DC Channels for Flexible High-Power Test Setups

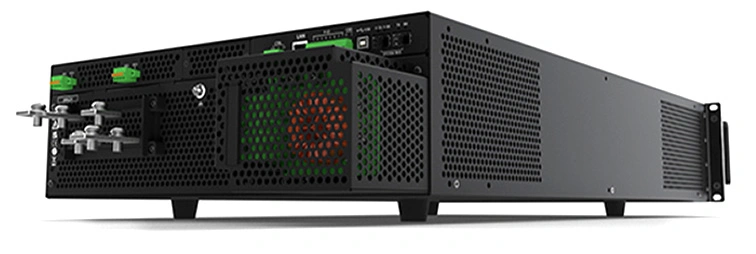

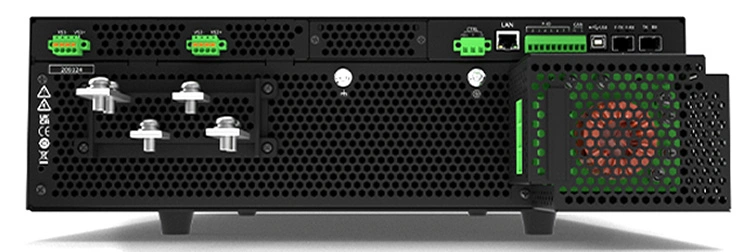

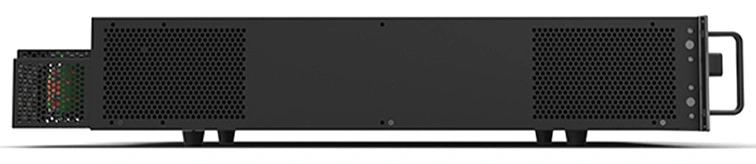

The ITECH IT6600D Series is a programmable high-power DC power supply for laboratories, production, and ATE systems. A 3U unit uses SiC semiconductor technology and provides two fully isolated DC channels with 21 kW each. The channels can be operated independently, in series, or in parallel and provide up to 42 kW combined.

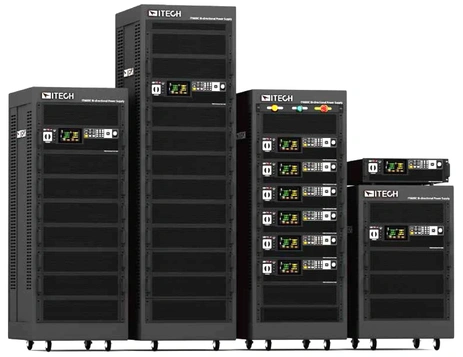

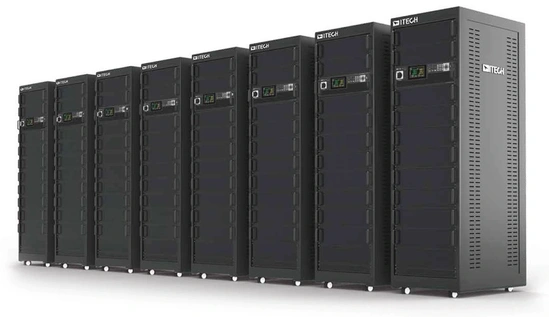

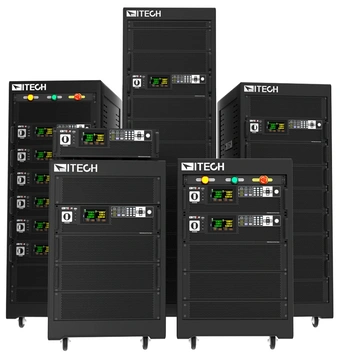

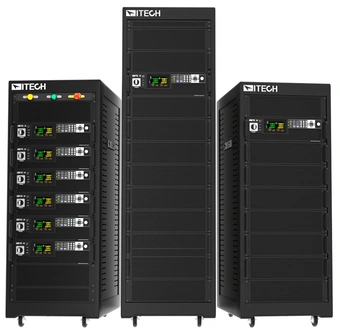

The wide-range output covers high voltages at lower current as well as high currents at lower voltage. This allows different operating points to be covered with a single instrument. For higher power requirements, the series can be expanded in master/slave operation using units with identical specifications. Active current sharing and optical isolation support parallel operation up to 10 MW; depending on the model, up to 2250 V, 2000 A, and 420 kW are available.
CC/CV priority determines whether current or voltage regulation takes precedence during the test sequence. LIST functions, data recording, and oscilloscope view support dynamic test sequences and their evaluation. OVP, OCP, OPP, UVP, and UCP as well as voltage, current, and power limits protect the DUT and test setup. USB, LAN, CAN, and digital I/O are available for system integration; GPIB, EtherCAT, and analog/RS232 are optional.
Alternative Products
If a single-channel DC output is sufficient, the ITECH IT6000D Series is a suitable alternative. If the power supply also needs to absorb energy and feed it back into the grid, the ITECH IT6600C Series is a suitable bidirectional DC power supply with an electronic DC load.
Related Product Categories
More Power, Fewer Changeovers in the DC Test Bench
Testing changing operating points, high currents or high voltages? We help you choose the IT6600D configuration that fits your test profile, power range and interfaces.
Variants
Specifications
| Power expansion up to 10 MW | via modular extension (master-slave parallel operation) |
|---|---|
| Voltage range | 0 – 2250 V |
| Current | up to 2000 A |
| Power | up to 420 kW per unit |
| Output | dual-channel, configurable in parallel or series |
| Single- and dual-channel operation | freely configurable |
| 5-inch touchscreen (GUI) | for intuitive operation |
| Operating modes | constant current (CC)/constant voltage (CV) |
| Data logging | average, minimum and maximum values as well as trend analysis |
| Integrated oscilloscope function | for real-time display of current and voltage curves |
| Integrated web server | with VNC support for screen mirroring |
| Standard Interfaces | LAN, CAN, USB, digital I/O |
| Optional Interfaces | GPIB, RS232 & analog, EtherCAT |
| Protection Functions | OVP (overvoltage protection), OCP (overcurrent protection), OPP (overpower protection), UVP (undervoltage protection), UCP (undercurrent protection) |
Options & Accessories
| IT-E9003 | ITECH warranty up to 3 years |
|---|---|
| IT-E9005 | ITECH warranty up to 5 years |
| IT-E31220-OO | Sense lead set 120 A, 200 cm, red/black, ring lug -> ring lug |
| IT-E30615-OO | Sense lead set 60 A, 150 cm, red/black, ring lug -> ring lug |
| IT-E32410-OO | Sense lead set 240 A, 100 cm, red/black, ring lug -> ring lug |
| IT-E33620-OO | Sense lead set 360 A, 200 cm, red/black, ring lug -> ring lug |
| IT-E32420-OO | Sense lead set 240 A, 150 cm, red/black, ring lug -> ring lug |
| IT-E168 | Fiber optic module incl. 2 fiber optic cables, 30 cm and 150 cm, for parallel connection of multiple units |
| IT-E169 | Fiber optic module incl. 1 fiber optic cable, 250 cm, for parallel connection of multiple cabinets |
| IT-E176 | GPIB communication card |
| IT-E177 | RS-232 & analog communication card |
| BSS2000 | Battery simulation software |
| SAS1000 | Solar array simulation software |
| AC power cord, length 5 m | |
| USB cable |
Scope of Delivery
| Unit(s) of the IT6600D Series |
| AC mains cable (EU/Schuko) |
| Operating manual |
Applications
| High-power DC Power Supply for long-duration applications with stable and precise output values |
| Testing and simulation of energy storage systems |
| ATE burn-in tests |
| Surface treatment, electroplating, sputtering |
| UPS (uninterruptible power supply) |
Videos
Links & Downloads
Supplier
LXinstruments has been supplying ITECH equipment since 2020. When an individual instrument needs to become part of a complete test system, we support you with product selection, system sizing and integration into the automation environment. The key is to ensure that the DUT, power requirements, interfaces and test sequence work together.
We also use ITECH equipment in customized test systems. Depending on the test application, we combine power supplies, electronic loads, grid simulation and measurement technology so that the functions match both the DUT and the test sequence.
